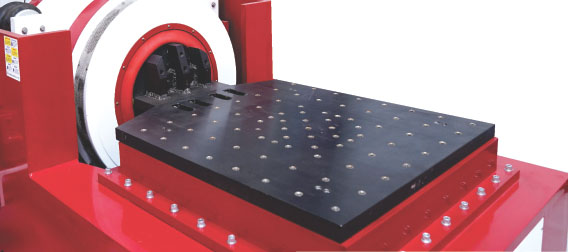

HORIZONTAL SLIP TABLE (X,Y - Axes Testing)
The TARANG Combo Base Horizontal Slip Table offers a revolutionary solution for vibration testing by eliminating the need for complex flexures traditionally used to support test specimens. This innovative design simplifies the setup and testing process, allowing for seamless horizontal motion along both the X and Y axes. The system ensures that test specimens can move freely in these directions without compromising or altering their orientation, maintaining the integrity of the test conditions.
By enabling translational motion in both horizontal axes, the TARANG Combo Base Horizontal Slip Table provides greater flexibility in simulating real-world environments for a wide range of components and systems. This capability is particularly valuable in applications where precise positioning and stability are essential, as it ensures that the specimen remains securely in place while allowing for unrestricted motion during testing.
With this simplified and efficient design, the slip table offers significant advantages in terms of setup time, ease of use, and overall testing accuracy, making it an ideal choice for applications in industries such as automotive, aerospace, and electronics, where precise and reliable vibration testing is critical.
Model |
THST-4040 |
THST-6060 |
THST-8080 |
THST-1010 |
THST-1212 |
THST-1515 |
Size [mm] |
400 X 400 |
600 X 600 |
800 X 800 |
1000 X 1000 |
1200 X 1200 |
1500 X 1500 |
Insert Pattern [M10/M12J] |
50 x 50 mm matrix |
100 x 100 mm matrix |
100 x 100 mm matrix |
100 x 100 mm matrix |
100 x 100 mm matrix |
100 x 100 mm matrix |
Weight |
20 Kgs |
40 Kgs |
80 Kgs |
130 Kgs |
180 Kgs |
240 Kgs |
Note - Customized Sizes are available

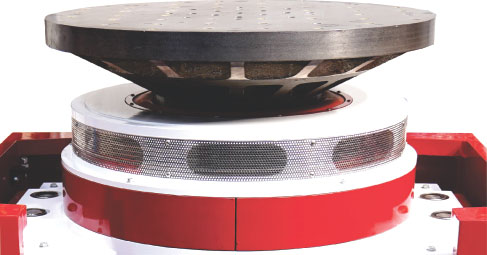

HEAD EXPANDER / VERTICAL LOAD SUPPORT (Z-Axis Testing)
The Tarang Head Expander is a versatile attachment that significantly enhances the loading capacity of your vibration shaker system, offering expanded possibilities for mounting larger or multiple test objects. This innovative accessory is available in three standard shapes—circular, rectangular, and square—providing flexibility to meet a wide range of testing requirements.
Designed to increase the surface area for mounting, the head expander allows for the testing of larger specimens that exceed the size limitations of your shaker system. It is particularly useful for occasional tests where the object to be tested is too large or of an unconventional shape to fit within the standard shaker dimensions. By providing a larger, more accommodating surface, the head expander ensures that test objects are securely mounted without compromising the integrity of the test conditions.
This expansion capability is especially beneficial in industries such as automotive, aerospace, and electronics, where occasional testing of larger components or assemblies is required. The Tarang Head Expander is engineered to offer easy integration with your existing shaker system, allowing for seamless transitions between standard and expanded testing setups. This makes it an essential tool for labs and facilities that need to test a variety of objects, ensuring versatility, efficiency, and accuracy in vibration testing.
Model |
THST-4040 |
THST-6060 |
THST-8080 |
THST-1010 |
THST-1212 |
THST-1515 |
Size [mm] |
400 X 400 |
600 X 600 |
800 X 800 |
1000 X 1000 |
1200 X 1200 |
1500 X 1500 |
Insert Pattern [M10/M12J] |
50 x 50 mm matrix |
100 x 100 mm matrix |
100 x 100 mm matrix |
100 x 100 mm matrix |
100 x 100 mm matrix |
100 x 100 mm matrix |
Weight |
25 Kgs |
44 Kgs |
85 Kgs |
140 Kgs |
220 Kgs |
330 Kgs |
Note - Customized Sizes are available
